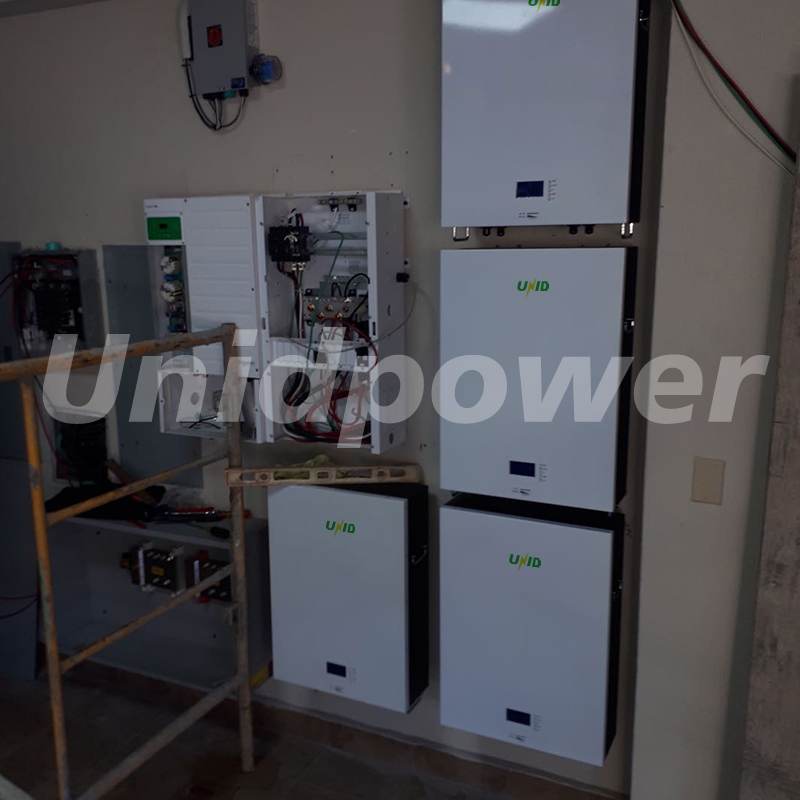

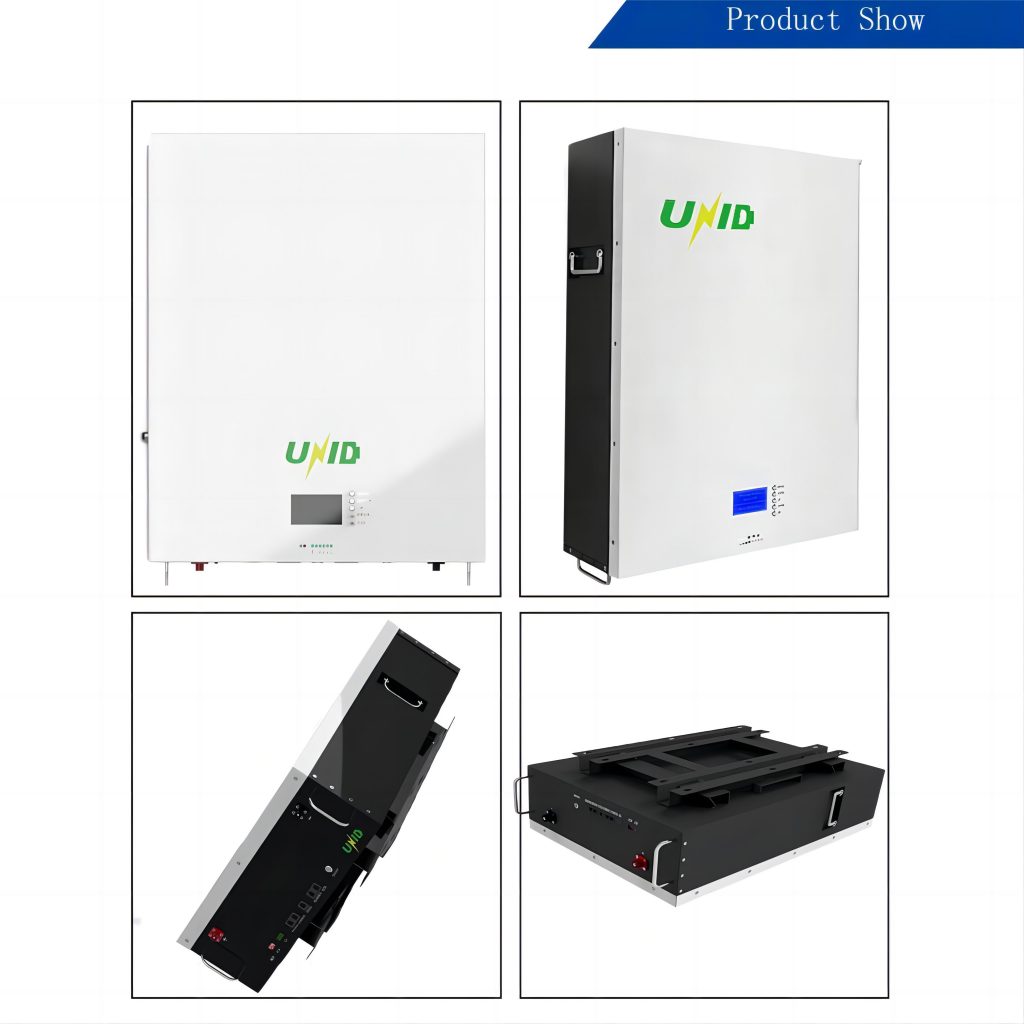

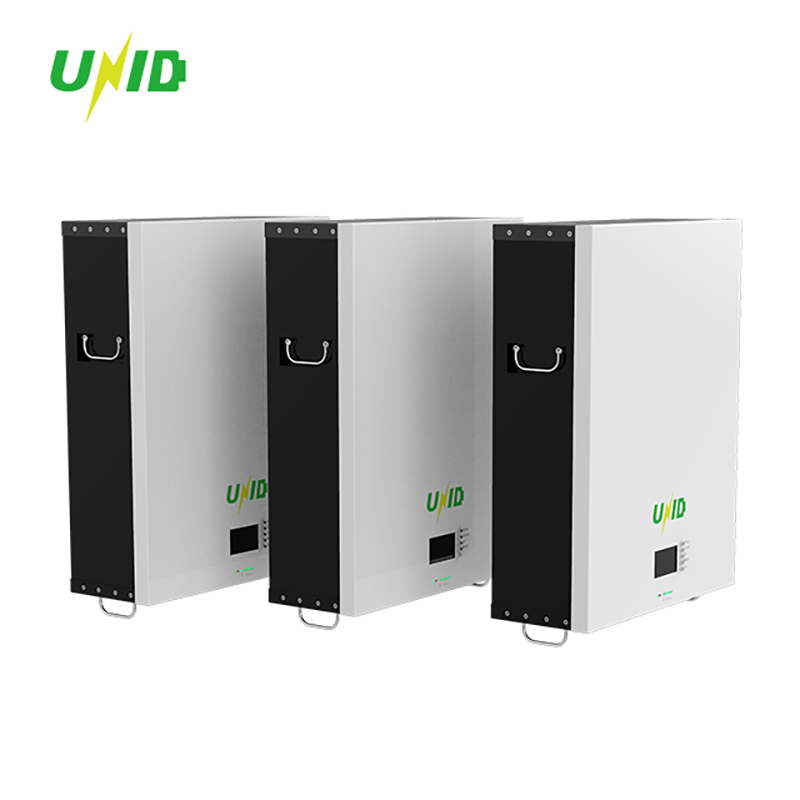

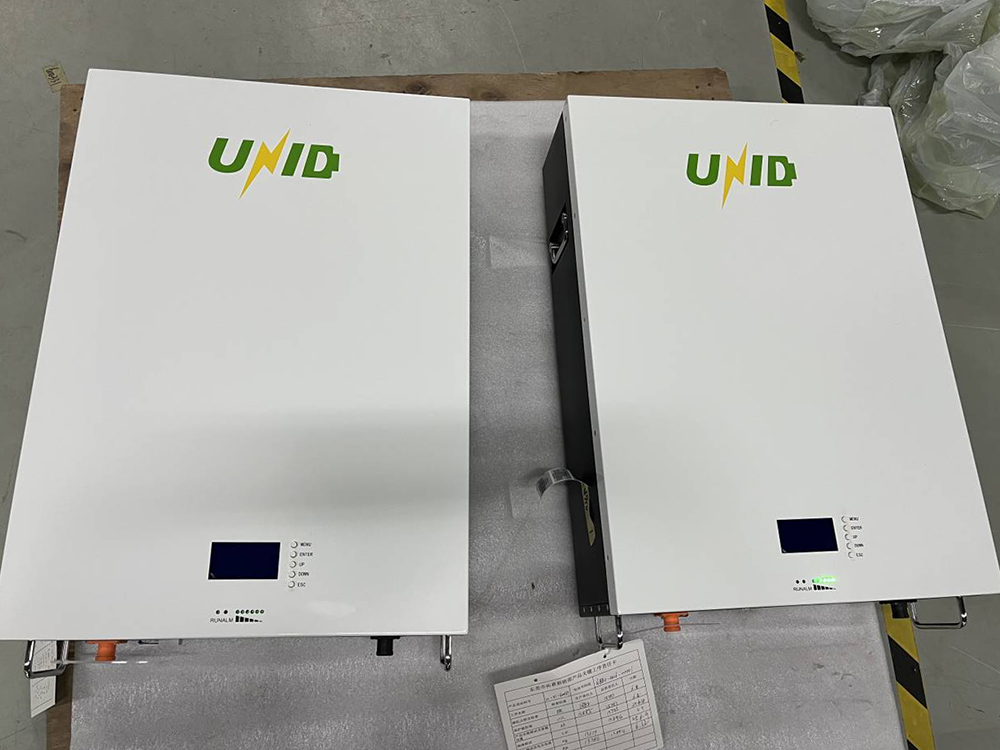

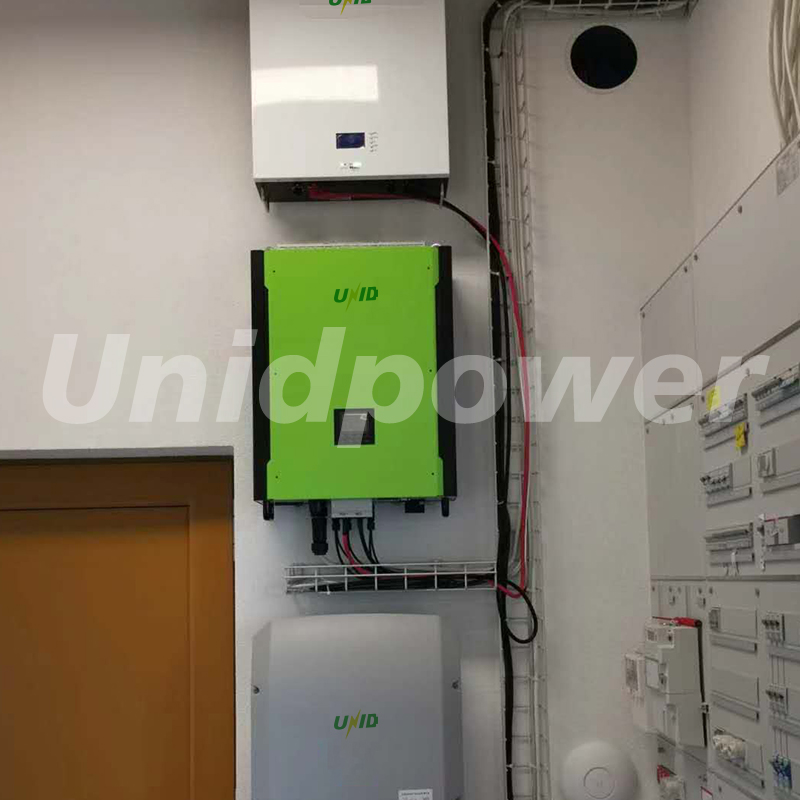

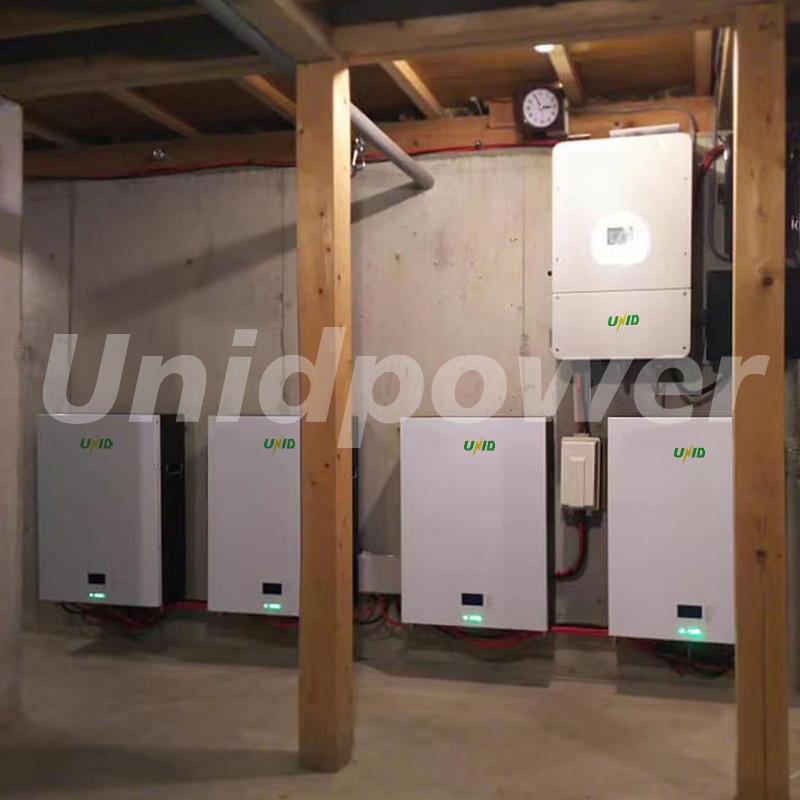

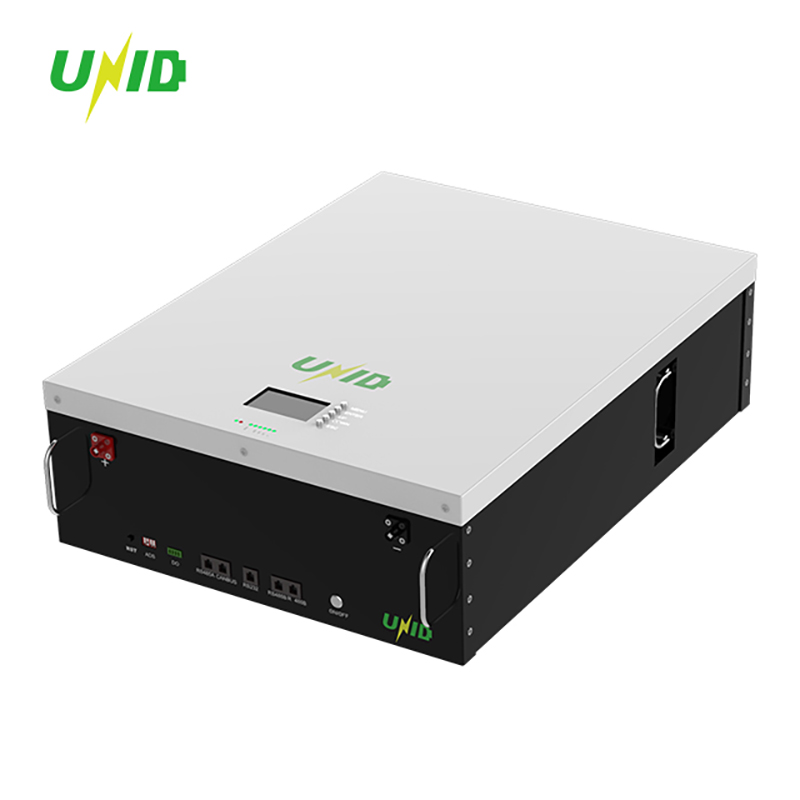

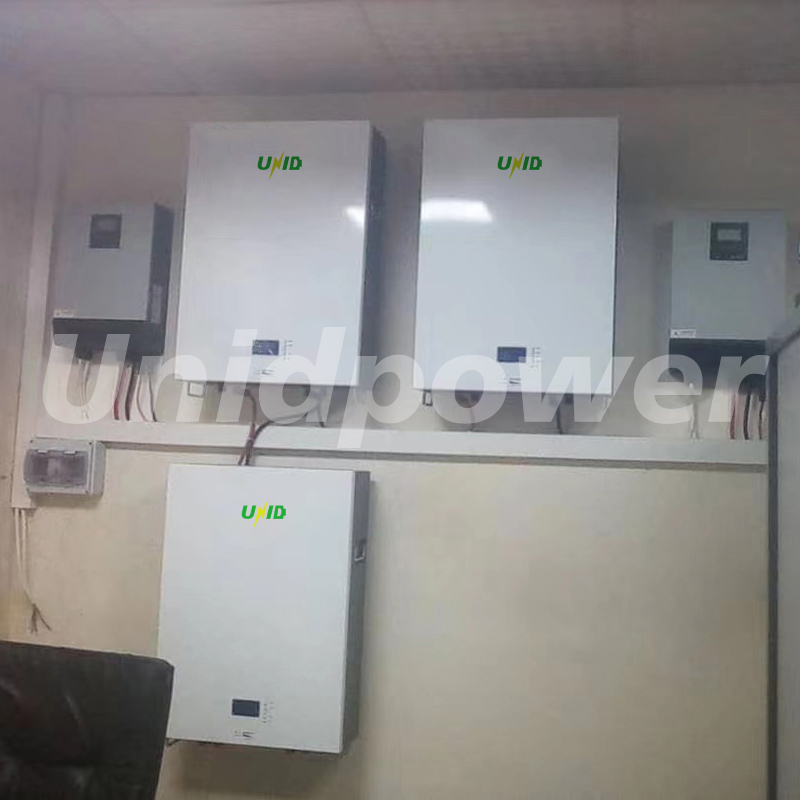

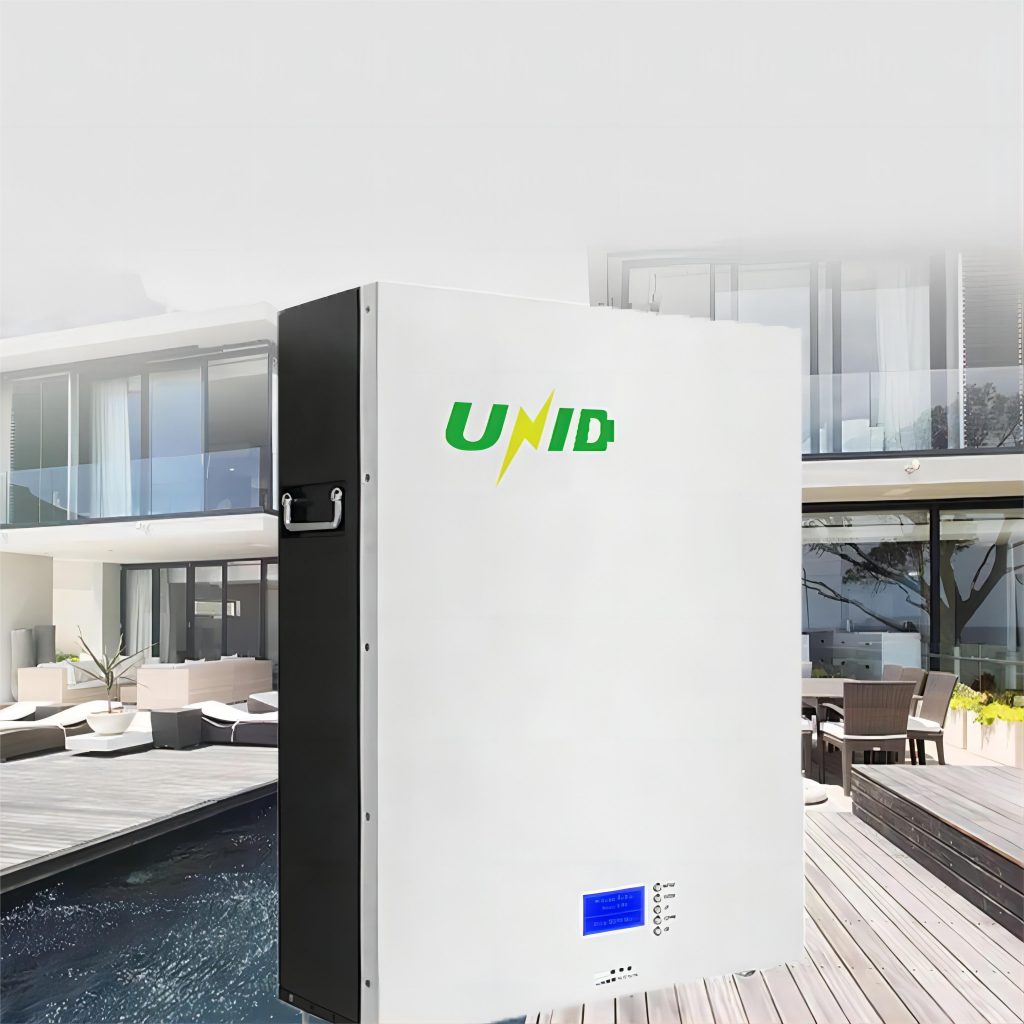

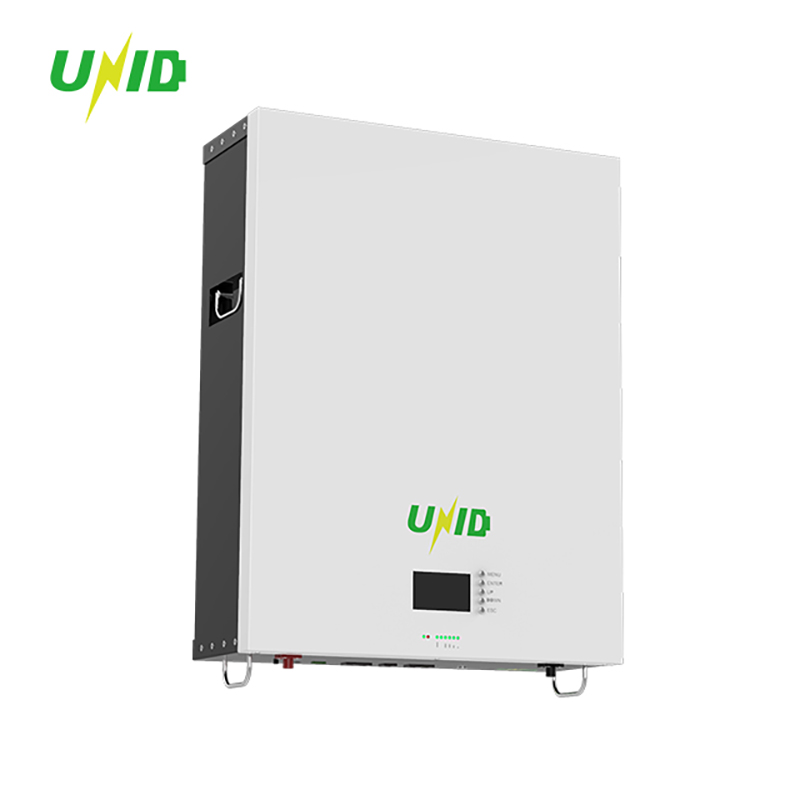

Unid Brand wall-mounted lithium-ion battery is a type of battery that is designed to be mounted on a wall for easy access and to save space. It is typically used as a backup power source or for energy storage in residential or commercial buildings. Unid Wall-mounted lithium-ion batteries are becoming increasingly popular as a means of reducing reliance on the electrical grid and increasing energy efficiency.
Unid Brand batteries are made up of Grade A lithium-ion phosphate (Lifepo4) cells, which store and release electrical energy. They are connected to an electrical system and can be charged during times when electricity is cheaper or more abundant, such as during the day when solar panels are generating excess power.
When the building's main power source is interrupted or during periods of high electricity demand, the wall-mounted lithium-ion battery can provide electricity to keep essential systems running. It can also be used to reduce peak demand charges by supplying electricity during times of high usage.
Why Choose US
⭐ Raw Material & Process– All products are made with Grade A LiFePO4 cells from Top Five brands, and meet UL standards.
⭐ Response Speed– Solution within 24H hours, delivery within 15 days for regular products, support customization.

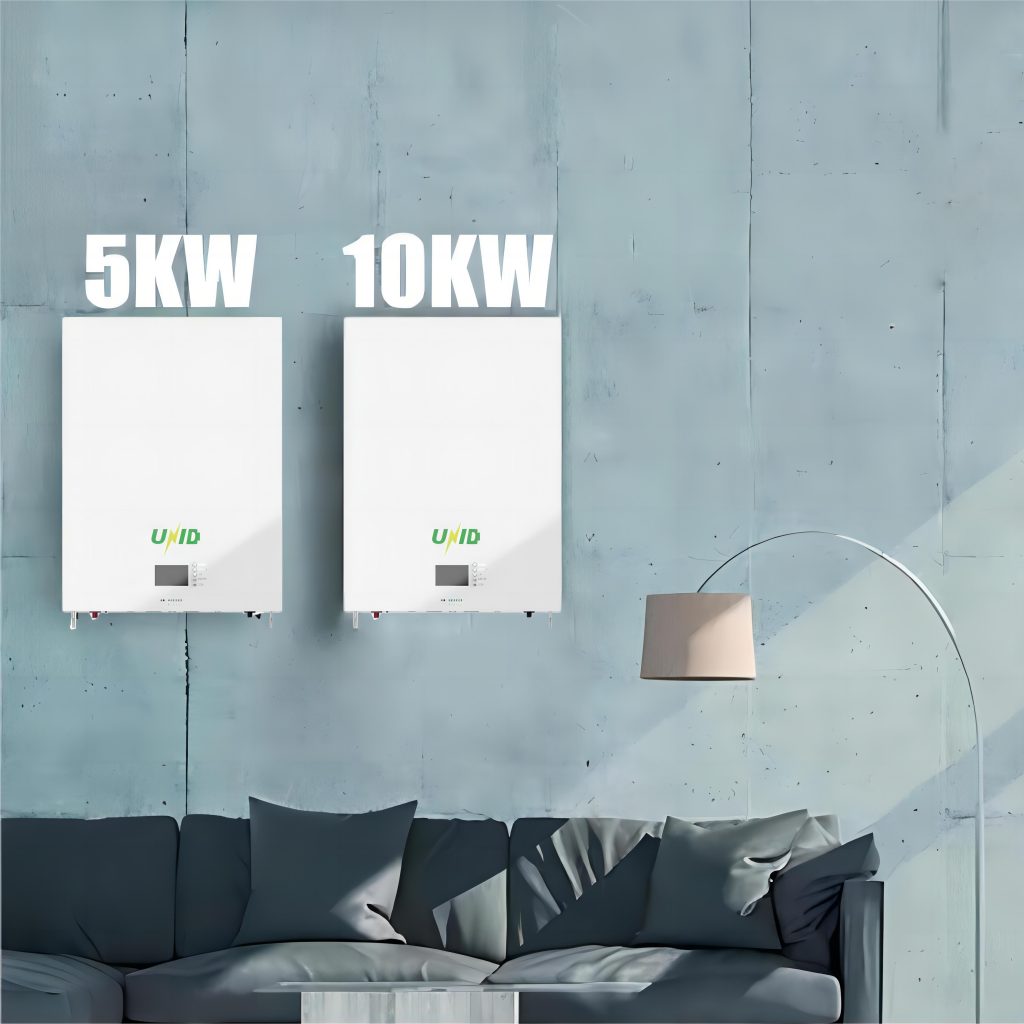

Model No. | TGPRO-5000W | TGPRO-10000W | |
Nominal Voltage | 51.2V (16Series) | ||
Rated Capacity | 100AH | 200AH | |
Storage Energy Capacity | 5120WH | 10240WH | |
Internal Impedance (AC) | ≤30mΩ | ||
Circle Lifetime | ≥5000 Circles @ 80% DOD, 25℃, 0.5C ≥4000 Circles @ 80% DOD, 40℃, 0.5C |
||
Charging Voltage | 56.0V + 0.5V | ||
Max Continuous Operation Current | 100A/150A (Optional) | ||
Discharge Cut-off Voltage | 45V + 0.2V | ||
Charge Temperature Range | 0℃ – 60℃ | ||
Discharge Temperature Range | -20℃ – 60℃ | ||
Storage Temperature Range | -40℃ – 55℃ @ 60% + 25% Relative Humidity | ||
Dimensions (L*W*H) |
680*485*220mm ( Including the Bracket) | ||
Weight | 62kg | 98kg | |
Communication Mode | RS232-PC, RS485 (B) -PC RS485 (A)- Inverter, Canbus- Inverter |
||
Parallel Connection | Support up to 10 sets of batteries in parallel | ||
Certificate | UN38.3 / MSDS / UL1973 (Cell) / IEC62619 (Cell) |
